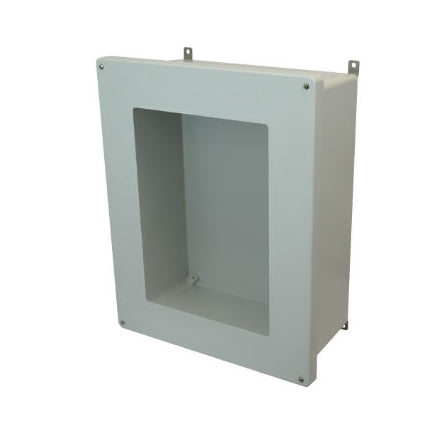

AM2068W 20x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window
For use with industrial control equipment in ordinary locations Allied's fiberglass enclosures are customizable The construction on these enclosures are like no other, they a durable and built for long term use.
Additional Info
Size in Inches: 20 inch
Part Number: AM2068W
Box Dimensions: 20" (H), 16" (W), 8.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 18
UPC Code: 85339920830
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back panels, hinged-front panels, thermal management, pole mount kits, and hole plug assemblies.
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
PVC Fittings Online | SKU:
AM2068W
AM2068W 20x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window
AM Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM2068W
Allied Moulded enclosures have a 4-6 week lead time.
$648.10
Unit price
/
Unavailable
Shipping calculated at checkout.
AM2068W 20x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AM Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM2068W
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
For use with industrial control equipment in ordinary locations Allied's fiberglass enclosures are customizable The construction on these enclosures are like no other, they a durable and built for long term use.
Additional Info
Additional Info
Size in Inches: 20 inch
Part Number: AM2068W
Box Dimensions: 20" (H), 16" (W), 8.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 18
UPC Code: 85339920830
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back panels, hinged-front panels, thermal management, pole mount kits, and hole plug assemblies.
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
