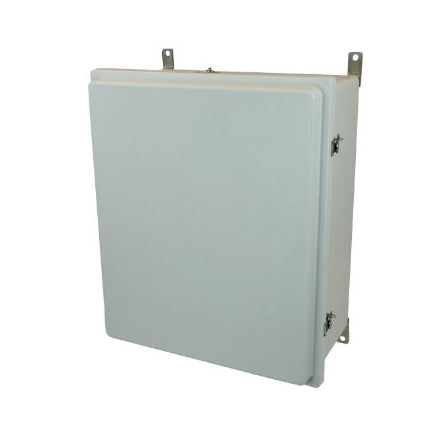

Actual part may differ slightly from image shown.

AM24200RT 24x20x10 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover

Allied has grown to become the benchmark of quality within the electrical industry. This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Well suited for high temperature or corrosive environments

Additional Info

Size in Inches: 24 inch
Part Number: AM24200RT
Box Dimensions: 24" (H), 20" (W), 10" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 24
UPC Code: 85339924043
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AM24200RT

AM24200RT 24x20x10 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover

AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM24200RT

Allied Moulded enclosures have a 4-6 week lead time.

$864.26
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM24200RT

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Allied has grown to become the benchmark of quality within the electrical industry. This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Well suited for high temperature or corrosive environments

Additional Info
Size in Inches: 24 inch
Part Number: AM24200RT
Box Dimensions: 24" (H), 20" (W), 10" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 24
UPC Code: 85339924043
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
