PVC Fittings Online  |  SKU: AM24200RTW

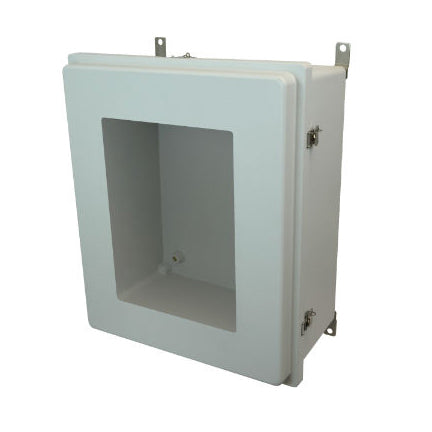

AM24200RTW 24x20x10 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover Window

AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM24200RTW

Allied Moulded enclosures have a 4-6 week lead time.

$1,076.97
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
These electrical enclosures are built tough to withstand extreme temperatures and corrosive environments They protect from dirt, oil,water and dust. They are durable and made for both indoor and outdoor use.

Additional Info
Part Number: AM24200RTW
Box Dimensions: 24" (H), 20" (W), 10" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 24
UPC Code: 85339924067
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
