PVC Fittings Online  |  SKU: AM24240RLW

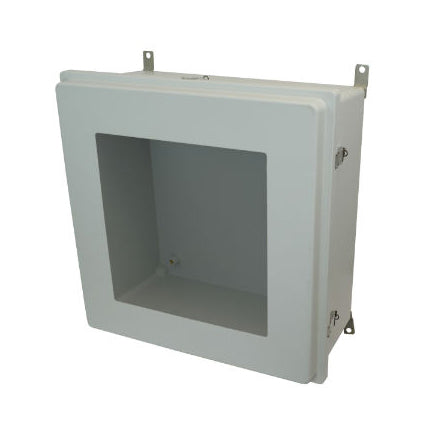

AM24240RLW 24x24x10 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover Window

Control Series Enclosure with Snap Latch Hinged Cover and Window - Part: AM24240RLW

Allied Moulded enclosures have a 4-6 week lead time.

$1,182.41
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Along with the Ultragaurd reinforced fiberglass polyester, rain guard is molded into the enclosure box frame top and bottom for additional protection. This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Great for indoor and outdoor use.

Additional Info
Part Number: AM24240RLW
Box Dimensions: 24" (H), 24" (W), 10" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 26
UPC Code: 85339924319
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
