PVC Fittings Online  |  SKU: AM24248RTW

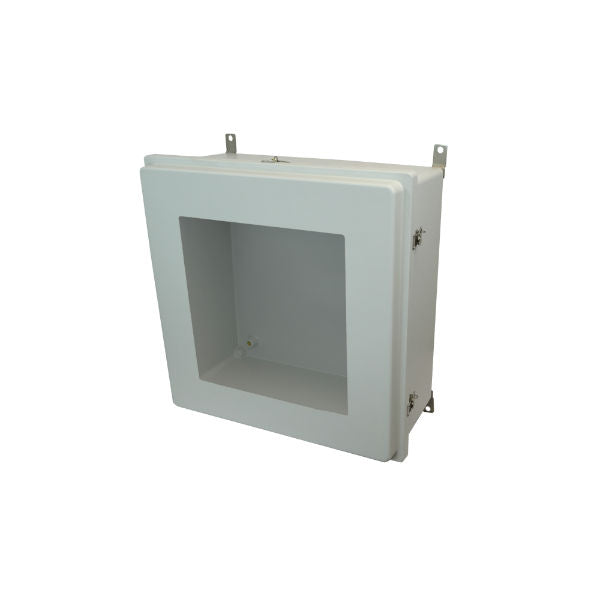

AM24248RTW 24x24x8 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover Window

Control Series Enclosure with Twist Latch Hinged Cover and Window - Part: AM24248RTW

Allied Moulded enclosures have a 4-6 week lead time.

$1,167.16
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Durable for long-term use. This enclosure is great for high temperature and corrosive applications. Allied's industrial enclosures can be found all over the world in many different control applications.

Additional Info
Part Number: AM24248RTW
Box Dimensions: 24" (H), 24" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 26
UPC Code: 85339924265
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
