PVC Fittings Online  |  SKU: AM30240RTW

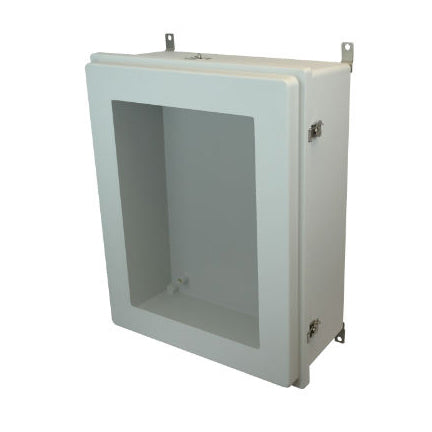

AM30240RTW 30x24x10 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover Window

Control Series Enclosure with Twist Latch Hinged Cover and Window - Part: AM30240RTW

Allied Moulded enclosures have a 4-6 week lead time.

$1,248.73
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
The UV resistant polycarbonate viewing window on this model provides a viewing area for equipment This enclosure is great for high temperature and corrosive applications. This enclosure is made for long term use.

Additional Info
Part Number: AM30240RTW
Box Dimensions: 30" (H), 24" (W), 10" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 29
UPC Code: 85339930303
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
