PVC Fittings Online  |  SKU: AM30248RL

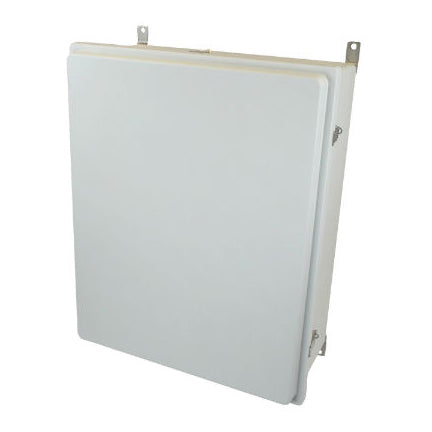

AM30248RL 30x24x8 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover

Control Series Enclosure with Snap Latch Hinged Cover - Part: AM30248RL

Allied Moulded enclosures have a 4-6 week lead time.

$991.44
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.



Actual part may differ slightly from image shown.

Description

These electrical enclosures are easy to modify and have a long life cycle. They are built with reinforced fiberglass polyester to withstand extreme temperatures and corrosive environments

Additional Info

Part Number: AM30248RL
Box Dimensions: 30" (H), 24" (W), 8" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 29
UPC Code: 85339930259
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
