PVC Fittings Online  |  SKU: AM30248RLW

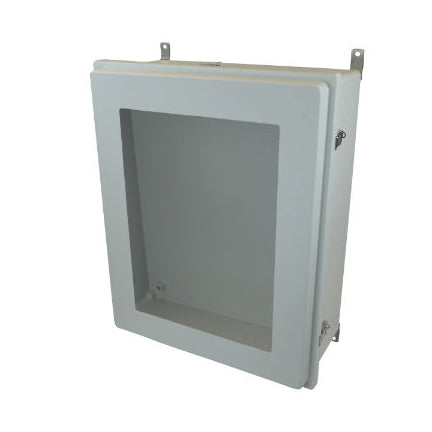

AM30248RLW 30x24x8 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover Window

Control Series Enclosure with Snap Latch Hinged Cover and Window - Part: AM30248RLW

Allied Moulded enclosures have a 4-6 week lead time.

$1,233.48
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This Control Series Enclosure with Snap Latch Hinged Cover and Window made by Allied is non -corrosive and non-conductive. This model having a full length viewing window. Control series enclosures insulate and protect controls and components.

Additional Info
Part Number: AM30248RLW
Box Dimensions: 30" (H), 24" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 29
UPC Code: 85339930273
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
