PVC Fittings Online  |  SKU: AM363012L3PT

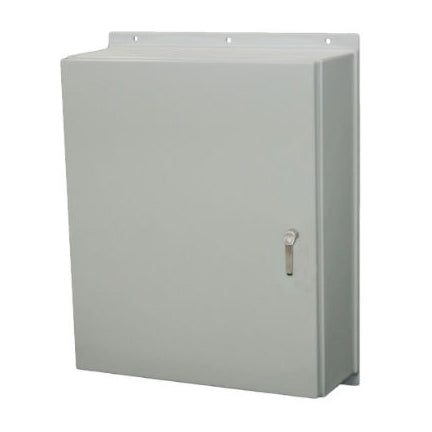

AM363012L3PT 36x30x12 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover

Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover - Part: AM363012L3PT

Allied Moulded enclosures have a 16-18 week lead time.

$1,605.84
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.



Actual part may differ slightly from image shown.

Description

The Empire series are available in ten standard sizes, including eight wall mount cabinets and two free standing sizes. This 3-point latched hinged cover is designed to insulate and house electrical and electronic controls, instruments and components for indoor and outdoor use.

Additional Info

Part Number: AM363012L3PT
Box Dimensions: 36.25" (H), 30.25" (W), 10.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: 3 Point Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 61
UPC Code: 85339994800
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
