PVC Fittings Online  |  SKU: AM363016L3PT

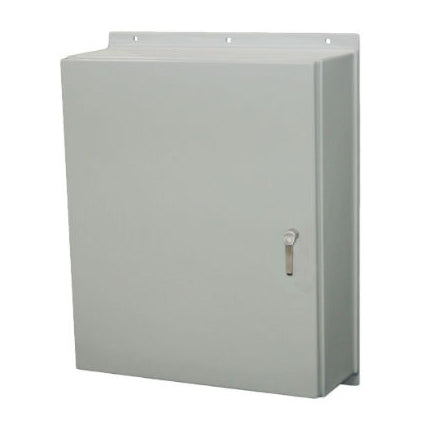

AM363016L3PT 36x30x16 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover

Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover - Part: AM363016L3PT

Allied Moulded enclosures have a 4-6 week lead time.

$2,911.65
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.



Actual part may differ slightly from image shown.

Description

Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover has a continuous stainless steel hinge. Optional white painted carbon steel back panels are fully interchangeable with other specified enclosures.

Additional Info

Part Number: AM363016L3PT
Box Dimensions: 36.04" (H), 30.04" (W), 14.16" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: 3 Point Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 66
UPC Code: 85339994817
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
