PVC Fittings Online  |  SKU: AM363612L

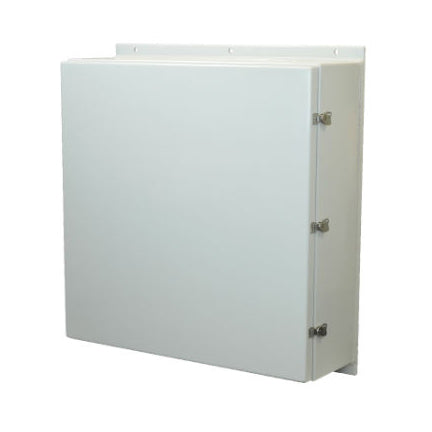

AM363612L 36x36x12 NEMA 4X Wall Mount Fiberglass Enclosure w/ Twist Latch Cover

Empire Series Enclosure with Wall Mount and Twist Latch Hinged Cover - Part: AM363612L

Allied Moulded enclosures have a 4-6 week lead time.

$3,078.94
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.



Actual part may differ slightly from image shown.

Description

Allied is pleased to modify any of the standard products to fit your needs. Especially well suited for extreme temperature and corrosive environments These are also easy to mount.

Additional Info

Part Number: AM363612L
Box Dimensions: 36.25" (H), 36.25" (W), 10.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 72
UPC Code: 85339940029
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
