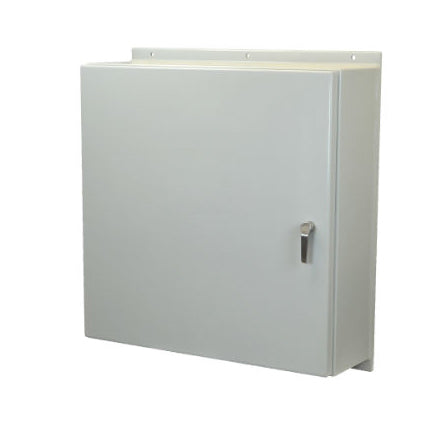

AM363616L3PT 36x36x16 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover
Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover - Part: AM363616L3PT
Allied Moulded enclosures have a 4-6 week lead time.
$3,441.72
Unit price
/
Unavailable
Shipping calculated at checkout.
AM363616L3PT 36x36x16 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actual part may differ slightly from image shown.
Description
Description
The reinforced fiberglass polyester used on Allied's electrical enclosures is both durable and corrosion resistant. Well suited for extreme temperatures. They are easy to mount and have a long life cycle.
Additional Info
Additional Info
Part Number: AM363616L3PT
Box Dimensions: 36.04" (H), 36.04" (W), 14.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: 3 Point Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 79
UPC Code: 85339994831
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XIEC 60529 Type IP66
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
