PVC Fittings Online | SKU: AM3PB

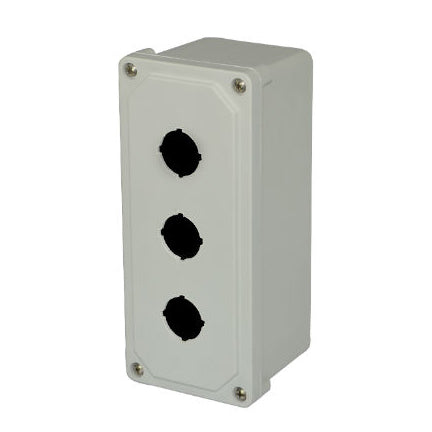

AM3PB 9x4x3 NEMA 4X INLINE PB Fiberglass Enclosure w/ Lift-Off Screw Cover 3 PB Cutouts 30.5MM

Name: AM3PB 9x4x3 NEMA 4X INLINE PB Fiberglass Enclosure w/ Lift-Off Screw Cover 3 PB Cutouts 30.5MM
Brand: PVC Fittings Online
SKU: AM3PB
Price: 83.02 USD
Availability: InStock

AM Series Pushbutton Enclosure with Inline Lift-Off Screw Cover - Part: AM3PB

Allied Moulded enclosures have a 4-6 week lead time.

$83.02

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Designed to insulate and house pushbuttons and switches in applications that require a human-machine interface. Protects from dirt, dust, oil, and water. For use with industrial control equipment in ordinary locations.

Additional Info

Related Documents: Not Available

Part Number: AM3PB

Box Dimensions: 8.26" (H), 3.26" (W), 3.12" (D)

Cover Type: Pushbutton

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 2

UPC Code: 85339910039

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
