AM483612L3PT 48x36x12 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover
Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover - Part: AM483612L3PT
Allied Moulded enclosures have a 4-6 week lead time.
$3,579.74
Unit price
/
Unavailable
Shipping calculated at checkout.
AM483612L3PT 48x36x12 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

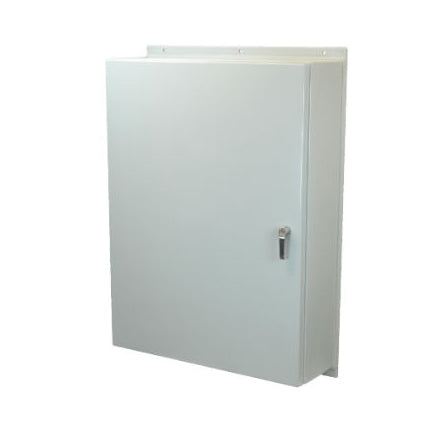

Actual part may differ slightly from image shown.
Description
Description
With flexible, self gripping gasket this electrical enclosure has a tight seal. It is to enclose and protect electrical and electronic controls for both indoor and outdoor application. They are easy to modify and have a long life cycle.
Additional Info
Additional Info
Related Documents: Not Available
Part Number: AM483612L3PT
Box Dimensions: 48.25" (H), 36.25" (W), 10.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: 3 Point Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 85
UPC Code: 85339994848
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
