PVC Fittings Online  |  SKU: AM483616L

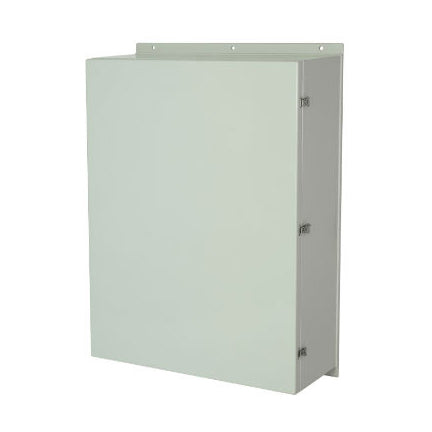

AM483616L 48x36x16 NEMA 4X Wall Mount Fiberglass Enclosure w/ Twist Latch Cover

Empire Series Enclosure with Wall Mount Twist Latch Hinged Cover - Part: AM483616L

Allied Moulded enclosures have a 4-6 week lead time.

$3,709.05
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.



Actual part may differ slightly from image shown.

Description

Empire Series Enclosure with Wall Mount Twist Latch Hinged Cover in non-corrosive and non-conductive. They are designed to insulate and house electrical and electronic controls. Protecting from wind, dirt, oil, water and more.

Additional Info

Related Documents: Not Available
Part Number: AM483616L
Box Dimensions: 48.04" (H), 36.04" (W), 14.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 91
UPC Code: 85339940050
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
