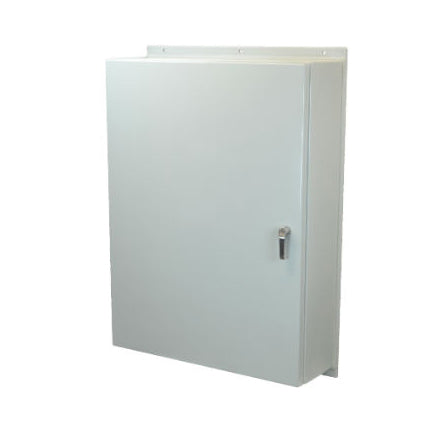

AM483616L3PT 48x36x16 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover

Allied Moulded offers Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover that are formulated of fiberglass reinforced polyester. They are durable and corrosion resistant. Great for indoor and out door applications.

Additional Info

Related Documents: Not Available
Size in Inches: Other Sizes
Part Number: AM483616L3PT
Box Dimensions: 48.04" (H), 36.04" (W), 14.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: 3 Point Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 93
UPC Code: 85339994855
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener

PVC Fittings Online  |  SKU: AM483616L3PT

AM483616L3PT 48x36x16 NEMA 4X Wall Mount Fiberglass Enclosure w/ 3 Point Latch Cover

Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover - Part: AM483616L3PT

Allied Moulded enclosures have a 4-6 week lead time.

$3,981.95
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover - Part: AM483616L3PT

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Allied Moulded offers Empire Series Enclosure with Wall Mount and 3 Point Latch Hinged Cover that are formulated of fiberglass reinforced polyester. They are durable and corrosion resistant. Great for indoor and out door applications.

Additional Info
Related Documents: Not Available
Size in Inches: Other Sizes
Part Number: AM483616L3PT
Box Dimensions: 48.04" (H), 36.04" (W), 14.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: 3 Point Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 93
UPC Code: 85339994855
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
