PVC Fittings Online | SKU:
AM603612L

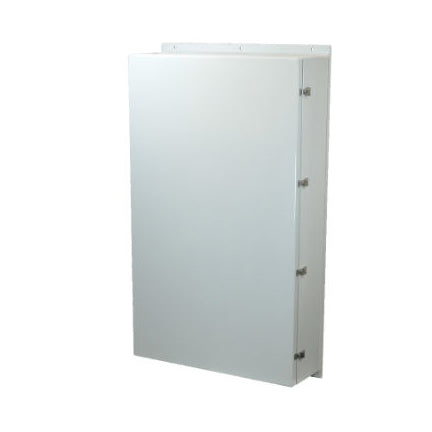

AM603612L 60x36x12 NEMA 4X Wall Mount Fiberglass Enclosure w/ Twist Latch Cover
Empire Series Enclosure with Wall Mount Twist Latch Hinged Cover - Part: AM603612L
Allied Moulded enclosures have a 4-6 week lead time.
$4,647.88
Unit price
/
Unavailable
Shipping calculated at checkout.
AM603612L 60x36x12 NEMA 4X Wall Mount Fiberglass Enclosure w/ Twist Latch Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actual part may differ slightly from image shown.
Description
Description
Buy now at low prices Allied has light weight non-corrosive fiberglass reinforced polyester that has a long life cycle. These enclosures are great for indoor and outdoor applications. Well suited for extreme temperatures.
Additional Info
Additional Info
Related Documents: Not Available
Part Number: AM603612L
Box Dimensions: 60.25" (H), 36.25" (W), 10.14" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 101
UPC Code: 85339940067
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Fastener Material: Plated alloy steel bonding fastener
