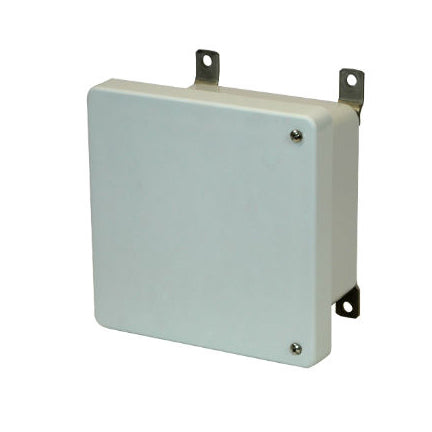

AM664H 6x6x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover

Name: AM664H 6x6x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM664H
Price: 106.57 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover - Part: AM664H

Allied Moulded enclosures have a 4-6 week lead time.

$106.57

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Used for indoor and outdoor applications Allied's enclosures are built to withstand the harshest weather and corrosive environments Allied Moulded's enclosure will protect against salt, water, chemicals and more. This box is durable and easy to mount.

Additional Info

Related Documents: Not Available

Part Number: AM664H

Box Dimensions: 6.1" (H), 6.1" (W), 4.05" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 4

UPC Code: 85339906650

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
