PVC Fittings Online | SKU: AM664LW

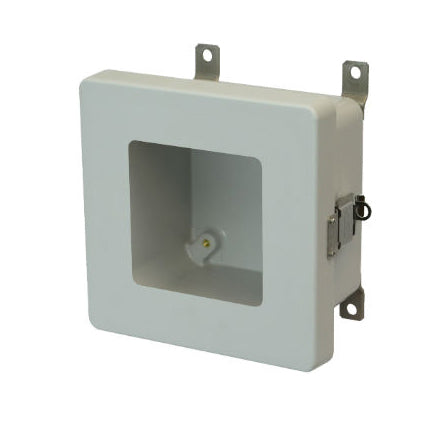

AM664LW 6x6x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window

Name: AM664LW 6x6x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window
Brand: PVC Fittings Online
SKU: AM664LW
Price: 187.99 USD
Availability: InStock

AM Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM664LW

Allied Moulded enclosures have a 4-6 week lead time.

$187.99

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded's fiberglass enclosures resist extremes in temperature and are flame retardant resulting in a very capable product for indoor and outdoor applications. They protect against wind, water, oil, dirt among other things. Can be customized to fit your needs.

Additional Info

Related Documents: Not Available

Part Number: AM664LW

Box Dimensions: 6.1" (H), 6.1" (W), 4.05" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Quick-Release Latch

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 4

UPC Code: 85339906711

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
