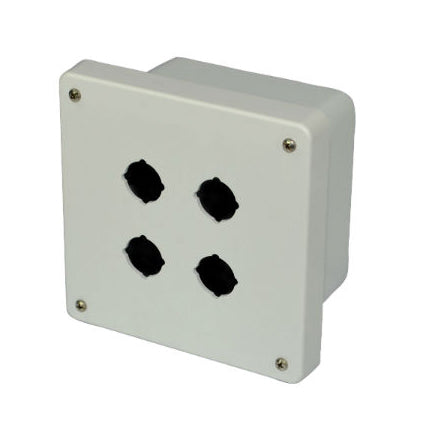

AM664P4 6x6x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover 4 PB Cutouts 30.5MM

Name: AM664P4 6x6x4 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover 4 PB Cutouts 30.5MM
Brand: PVC Fittings Online
SKU: AM664P4
Price: 105.13 USD
Availability: InStock

AM Series Pushbutton Enclosure with Multi-Hole Lift-Off Screw Cover - Part: AM664P4

Allied Moulded enclosures have a 4-6 week lead time.

$105.13

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

The AM Pushbutton enclosures were developed for system interface applications where multiple pushbutton control devices are used in various control applications. They are formulated with Allied's Ultragaurd fiberglass reinforced polyester. Great for both indoor and outdoor applications.

Additional Info

Related Documents: Not Available

Part Number: AM664P4

Box Dimensions: 6.1" (H), 6.1" (W), 4.05" (D)

Cover Type: Pushbutton

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 4

UPC Code: 85339906742

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series stainless steel mounting brackets
