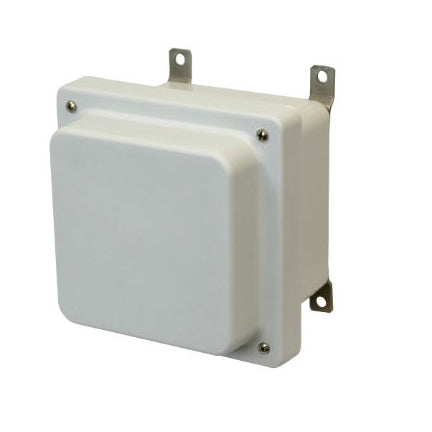

AM664R 6x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover

Name: AM664R 6x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM664R
Price: 104.50 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover - Part: AM664R

Allied Moulded enclosures have a 4-6 week lead time.

$104.50

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This AM-R Series JIC Size Junction Box with Lift-Off Screw Cover is UV stabilized for outdoor use. Especially well suited for high temperatures and corrosive environments Protecting from wind, dirt, oil, water and more this AM-R series electrical box is made of fiberglass reinforced polyester for strong long term use.

Additional Info

Related Documents: Not Available

Part Number: AM664R

Box Dimensions: 6.1" (H), 6.1" (W), 4.05" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339906841

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
