PVC Fittings Online  |  SKU: AM664RHW

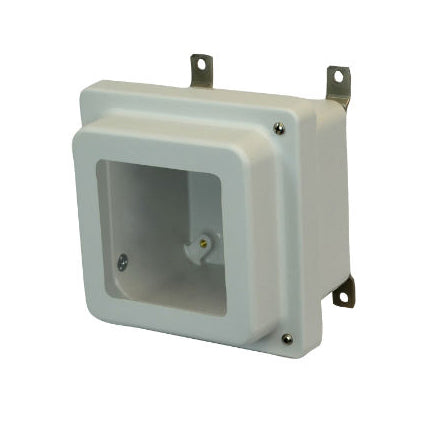

AM664RHW 6x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover Window

AM-R Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM664RHW

Allied Moulded enclosures have a 4-6 week lead time.

$176.87
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.



Actual part may differ slightly from image shown.

Description

Durable for long term use Allied's electrical enclosures are strong, and have a long life cycle. Stainless steel hinges and a 3-point latching handle as standard, these boxes are modifiable. Great for indoor and outdoor use.

Additional Info

Related Documents: Not Available
Part Number: AM664RHW
Box Dimensions: 6.1" (H), 6.1" (W), 4.05" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 6
UPC Code: 85339906919
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel mounting brackets
