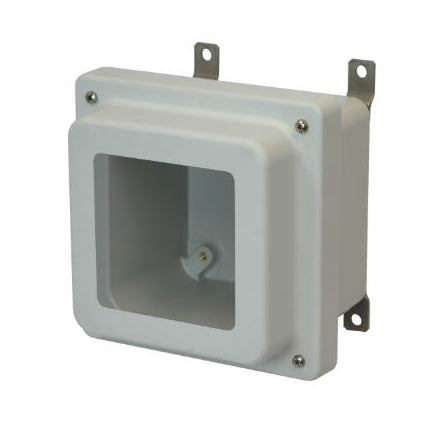

AM664RW 6x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

Name: AM664RW 6x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window
Brand: PVC Fittings Online
SKU: AM664RW
Price: 170.62 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM664RW

Allied Moulded enclosures have a 4-6 week lead time.

$170.62

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Found all over the world Allied's industrial enclosures are used for many applications. This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Great for both indoor and outdoor applications.

Additional Info

Related Documents: Not Available

Part Number: AM664RW

Box Dimensions: 6.1" (H), 6.1" (W), 4.05" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339906896

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
