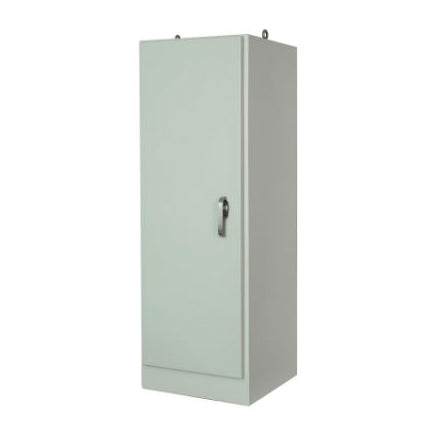

AM722525FS 72x25x25 NEMA 4X Free-Standing Single Door Fiberglass Enclosure w/ 3-PT Latching Handle

Allied's freestanding enclosures have been designed for large cabinet installations for major power and communication applications. Durable, all fiberglass construction. These electrical enclosures are non-corrosive and non-conductive.

Additional Info

Related Documents: Not Available
Size in Inches: Other Sizes
Part Number: AM722525FS
Box Dimensions: 72" (H), 25" (W), 24.5" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM cover and hand layup box
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 215
UPC Code: 85339940081
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, and Print Pocket
Fastener Material: 300 Series stainless steel mounting brackets

PVC Fittings Online  |  SKU: AM722525FS

AM722525FS 72x25x25 NEMA 4X Free-Standing Single Door Fiberglass Enclosure w/ 3-PT Latching Handle

Empire Series Free Standing Single Door Enclosure - Part: AM722525FS

Allied Moulded enclosures have a 4-6 week lead time.

$7,870.14
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
Empire Series Free Standing Single Door Enclosure - Part: AM722525FS

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Allied's freestanding enclosures have been designed for large cabinet installations for major power and communication applications. Durable, all fiberglass construction. These electrical enclosures are non-corrosive and non-conductive.

Additional Info
Related Documents: Not Available
Size in Inches: Other Sizes
Part Number: AM722525FS
Box Dimensions: 72" (H), 25" (W), 24.5" (D)
Cover Type: Opaque
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM cover and hand layup box
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 215
UPC Code: 85339940081
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175 CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, and Print Pocket
Fastener Material: 300 Series stainless steel mounting brackets
