PVC Fittings Online | SKU: AM743

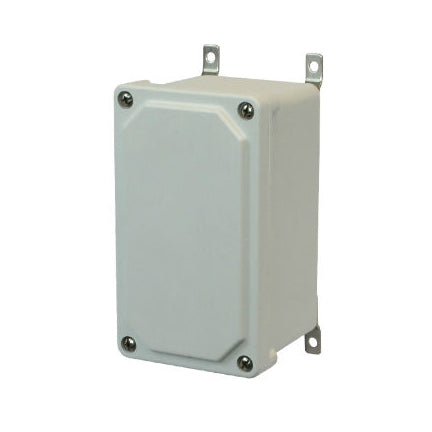

AM743 7x4x3 NEMA 4X JUNC Fiberglass Enclosure w/ Lift-Off Screw Cover SS Mounting Feet

Name: AM743 7x4x3 NEMA 4X JUNC Fiberglass Enclosure w/ Lift-Off Screw Cover SS Mounting Feet
Brand: PVC Fittings Online
SKU: AM743
Price: 77.83 USD
Availability: InStock

AM Series Small Junction Box with Lift-Off Screw Cover - Part: AM743

Allied Moulded enclosures have a 4-6 week lead time.

$77.83

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

The AM Series Small Junction boxes are designed for rugged surface mount applications and remote pendant applications. Allied Moulded's enclosure will protect against salt, water, chemicals and more. This enclosure is great for high temperature and corrosive applications.

Additional Info

Related Documents: Not Available

Part Number: AM743

Box Dimensions: 6.01" (H), 3.31" (W), 3.13" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 2

UPC Code: 85339910077

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Aluminum Back Panel: PA74 Fiberglass Back Panel: PF74

Fastener Material: 300 Series stainless steel mounting brackets
