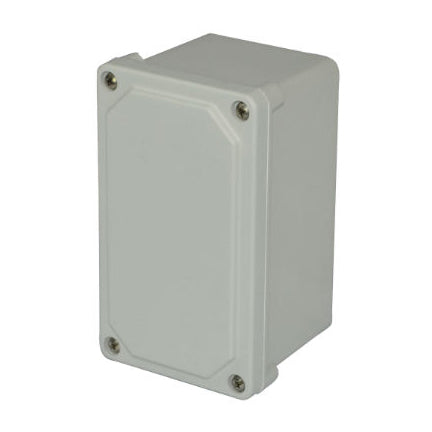

AM743SF 7x4x3 NEMA 4X JUNC Fiberglass Enclosure w/ Lift-Off Screw Cover

Name: AM743SF 7x4x3 NEMA 4X JUNC Fiberglass Enclosure w/ Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM743SF
Price: 66.09 USD
Availability: InStock

AM Series Small Junction Box with Lift-Off Screw Cover - Part: AM743SF

Allied Moulded enclosures have a 4-6 week lead time.

$66.09

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied's small junction box enclosures come standard with back panel bosses and inserts for back panel installations. They have stainless steel captive cover screws and mounting feet. These enclosures are great for indoor and outdoor applications.

Additional Info

Related Documents: Not Available

Part Number: AM743SF

Box Dimensions: 6.01" (H), 3.31" (W), 3.13" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 2

UPC Code: 85339910091

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: AM series panels

Fastener Material: 300 Series stainless steel mounting brackets
