PVC Fittings Online  |  SKU: AM864HP6

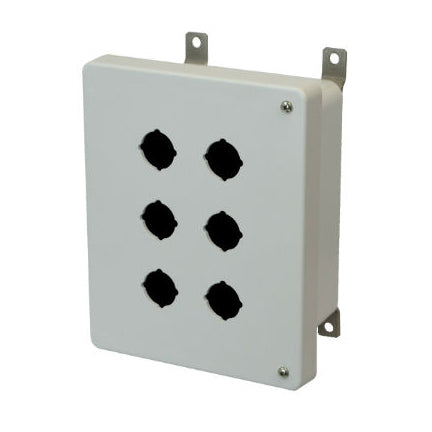

AM864HP6 8x6x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 6 PB Cutouts 30.5MM

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM864HP6

Allied Moulded enclosures have a 4-6 week lead time.

$122.54
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This Allied enclosure is lightweight, non-corrosive and non-conductive. The gasket system on this electrical enclosure is encased in a continuous channel on the cover. Easy to modify.

Additional Info
Related Documents: Not Available
Part Number: AM864HP6
Box Dimensions: 8" (H), 6.13" (W), 4.01" (D)
Cover Type: Pushbutton
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 4
UPC Code: 85339908753
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Fastener Material: 300 Series stainless steel mounting brackets
