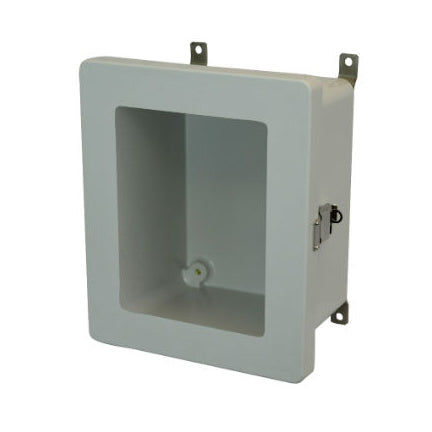

AM864LW 8x6x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window

Name: AM864LW 8x6x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window
Brand: PVC Fittings Online
SKU: AM864LW
Price: 201.24 USD
Availability: InStock

AM Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM864LW

Allied Moulded enclosures have a 4-6 week lead time.

$201.24

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

The fiberglass reinforced polyester by Ultragaurd Allied Moulded uses on their electrical enclosures is non-corrosive and non-conductive. These boxes are easily modified and easy to mount.

Additional Info

Related Documents: Not Available

Part Number: AM864LW

Box Dimensions: 8" (H), 6.13" (W), 4.01" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Quick-Release Latch

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 4

UPC Code: 85339908715

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series stainless steel mounting brackets
