PVC Fittings Online | SKU:
AM864RL
AM864RL 8x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover
AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part AM864RL
Allied Moulded enclosures have a 4-6 week lead time.
$143.45
Unit price
/
Unavailable
Shipping calculated at checkout.
AM864RL 8x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

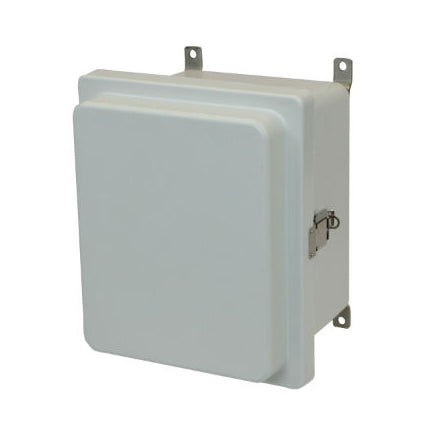

Actual part may differ slightly from image shown.
Description
Description
Coming in various shapes and sizes Allied Moulded's electrical enclosures are very customizable They protect from high temperatures and extreme environments For indoor and outdoor use.
Additional Info
Additional Info
Related Documents: Not Available
Part Number: AM864RL
Box Dimensions: 8" (H), 6.13" (W), 4.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 6
UPC Code: 85339908845
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel mounting brackets
