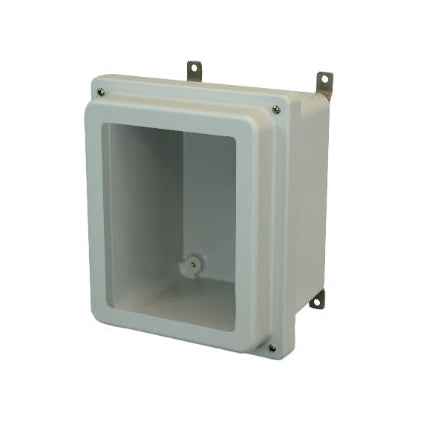

AM864RW 8x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

Name: AM864RW 8x6x4 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window
Brand: PVC Fittings Online
SKU: AM864RW
Price: 183.84 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM864RW

Allied Moulded enclosures have a 4-6 week lead time.

$183.84

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied uses top notch Ultragaurd fiberglass reinforced polyester to make their electrical enclosures non-corrosive and non-conductive. They are durable with a long term use both indoor and outdoors. Made to enclose and house electronic and electrical controls and instruments.

Additional Info

Related Documents: Not Available

Part Number: AM864RW

Box Dimensions: 8" (H), 6.13" (W), 4.01" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339908951

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
