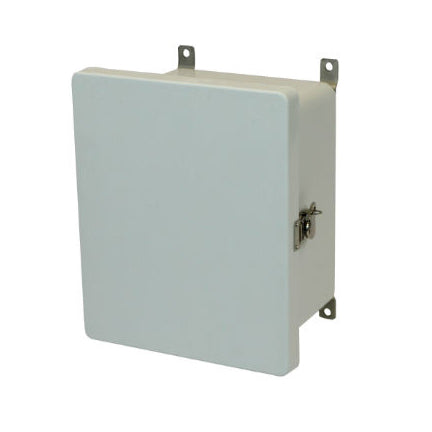

AM864T 8x6x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover

Name: AM864T 8x6x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover
Brand: PVC Fittings Online
SKU: AM864T
Price: 133.86 USD
Availability: InStock

AM Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM864T

Allied Moulded enclosures have a 4-6 week lead time.

$133.86

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied offers customizable enclosures for you needs. These boxes protect against rain,sleet, dust, oil and so much more. They are strong and the life cycle of them is lasting. Easy to mount as well.

Additional Info

Related Documents: Not Available

Part Number: AM864T

Box Dimensions: 8" (H), 6.13" (W), 4.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Twist Latch

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 4

UPC Code: 85339908685

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel mounting brackets
