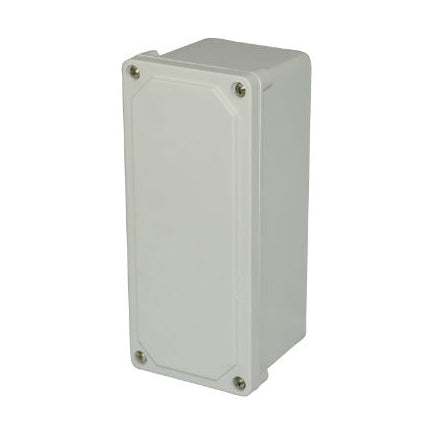

AM943SF 9x4x3 NEMA 4X JUNC Fiberglass Enclosure w/ Lift-Off Screw Cover

Name: AM943SF 9x4x3 NEMA 4X JUNC Fiberglass Enclosure w/ Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM943SF
Price: 72.73 USD
Availability: InStock

AM Series Small Junction Box with Lift-Off Screw Cover - Part: AM943SF

Allied Moulded enclosures have a 4-6 week lead time.

$72.73

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

For outdoor use this electrical enclosure is UV stabilized. These boxes are especially well suited for high temperatures and corrosive environments Rigid design with back panel inserts. Easy to mount.

Additional Info

Related Documents: Not Available

Part Number: AM943SF

Box Dimensions: 8.26" (H), 3.26" (W), 3.12" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 2

UPC Code: 85339910107

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels and Hole Plugs

Fastener Material: 300 Series stainless steel mounting brackets
