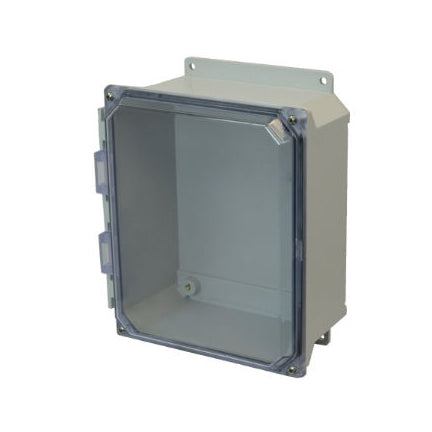

AMU1084CCF 10x8x4 NEMA 4X Fiberglass Enclosure w/ Clear Lift-Off Screw Cover Flange Mount

AMU Fiberglass Enclosure Clear Lift-Off Screw Cover - Part: AMU1084CCF

Allied Moulded enclosures have a 4-6 week lead time.

$132.30
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Ultraline has a more modern exterior design in a flush cover to base contour which many prefer. This electrical box is non-corrosive and lightweight. Great for indoor and outdoor applications.

Additional Info
Related Documents: Not Available
Part Number: AMU1084CCF
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959526
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
