Actual part may differ slightly from image shown.

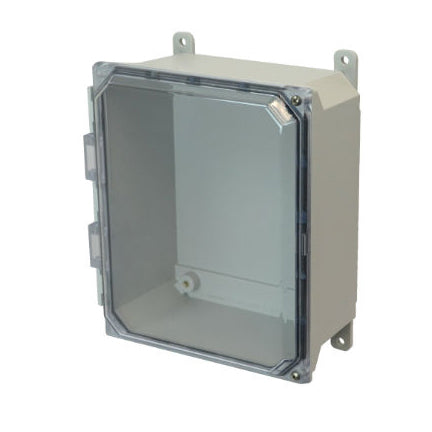

AMU1084CCH 10x8x4 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Foot Mount

Created UV resistant, this box will protect all electrical components Mounting brackets are 300 series stainless steel. Ultraline enclosures have a more modern exterior design.

Additional Info

Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AMU1084CCH
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959199
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AMU1084CCH

AMU1084CCH 10x8x4 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Foot Mount

AMU Fiberglass Enclosure Clear Hinged Screw Cover - Part: AMU1084CCH

Allied Moulded enclosures have a 4-6 week lead time.

$145.48
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AMU Fiberglass Enclosure Clear Hinged Screw Cover - Part: AMU1084CCH

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Created UV resistant, this box will protect all electrical components Mounting brackets are 300 series stainless steel. Ultraline enclosures have a more modern exterior design.

Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AMU1084CCH
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959199
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
