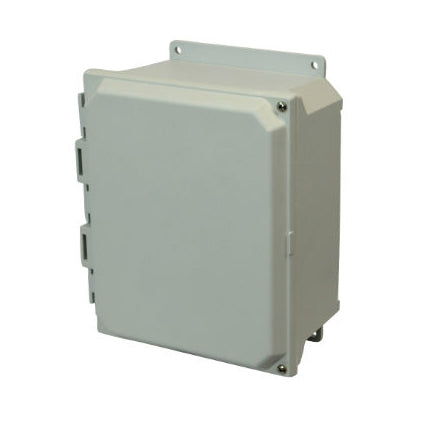

Actual part may differ slightly from image shown.

AMU1084HF 10x8x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Flange Mount

Used in many different control applications all over the world Allied Moulded has grown to become the benchmark of quality. Easy to mount to a pole,wall or machine. These enclosures are strong and hold up in many harsh conditions.

Additional Info

Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AMU1084HF
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959540
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AMU1084HF

AMU1084HF 10x8x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU1084HF

Allied Moulded enclosures have a 4-6 week lead time.

$134.44
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU1084HF

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Used in many different control applications all over the world Allied Moulded has grown to become the benchmark of quality. Easy to mount to a pole,wall or machine. These enclosures are strong and hold up in many harsh conditions.

Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AMU1084HF
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959540
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
