PVC Fittings Online  |  SKU: AMU1084HW

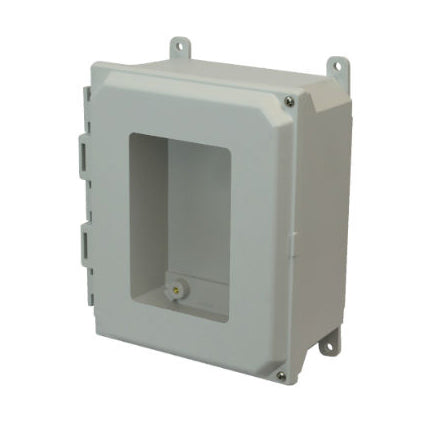

AMU1084HW 10x8x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Foot Mount

AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU1084HW

Allied Moulded enclosures have a 4-6 week lead time.

$217.14
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Often found in oil refineries, waste water treatment equipment, and chemical plants this enclosure is designed to insulate and protect controls and components in both indoor and outdoor applications. Well suited for high temperatures and corrosive environments These boxes are also easy to mount.

Additional Info
Related Documents: Not Available
Part Number: AMU1084HW
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959205
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
