PVC Fittings Online  |  SKU: AMU1084HWF

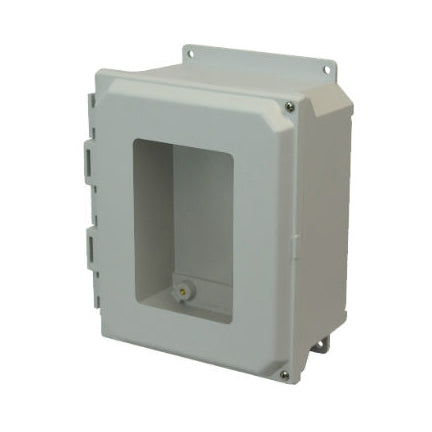

AMU1084HWF 10x8x4 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU1084HWF

Allied Moulded enclosures have a 4-6 week lead time.

$223.14
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Ultraline enclosures offer additional features including patent pending multi mounting capability hinged front panel, and clear polycarbonate covers for instrumentation applications. Protecting against wind,water, oil, dust and more these enclosures are durable and to be used long term both indoor and outdoor.

Additional Info
Related Documents: Not Available
Part Number: AMU1084HWF
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959564
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
