PVC Fittings Online  |  SKU: AMU1084LW

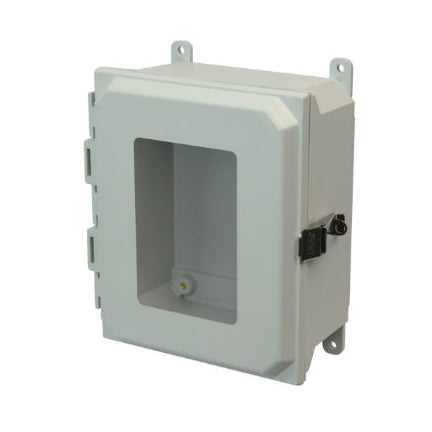

AMU1084LW 10x8x4 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1084LW

Allied Moulded enclosures have a 4-6 week lead time.

$237.15
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Weather you need custom holes and cutouts, color matches or factory supplied silk screening Allied's electrical enclosures are customizable. Strong enough to with stand high temperatures and corrosive environments These boxes are also easy to mount.

Additional Info
Related Documents: Not Available
Part Number: AMU1084LW
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959236
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
