PVC Fittings Online  |  SKU: AMU1084T

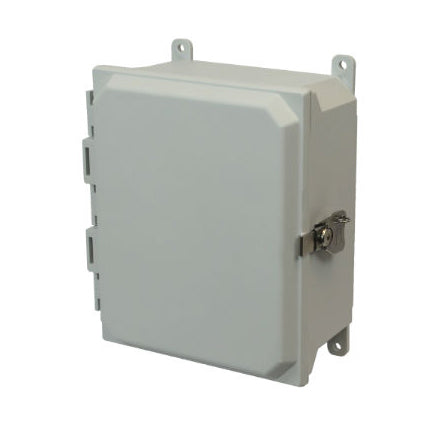

AMU1084T 10x8x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Foot Mount

AMU Fiberglass Enclosure Twist Latch Hinged Cover- Part: AMU1084T

Allied Moulded enclosures have a 4-6 week lead time.

$156.36
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Complete with encased gasket system these Allied electrical enclosures and durable for long term use. They are easily customizable for your needs. Protects from dirt, oil,water, wind and more.

Additional Info
Related Documents: Not Available
Part Number: AMU1084T
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959243
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
