PVC Fittings Online  |  SKU: AMU1084TF

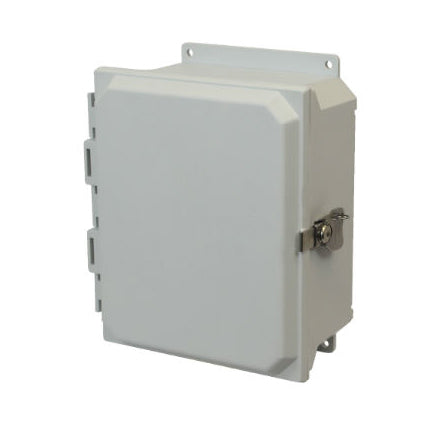

AMU1084TF 10x8x4 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Flange Mount

AMU Fiberglass Enclosure Twist Latch Hinged Cover- Part: AMU1084TF

Allied Moulded enclosures have a 4-6 week lead time.

$160.73
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This twist latch hinged enclosure is non-corrosive and non-conductive protecting from dirt, dust, oil and water. For use with industrial control equipment in ordinary locations This enclosure has a long term life cycle.

Additional Info
Related Documents: Not Available
Part Number: AMU1084TF
Box Dimensions: 10.05" (H), 8.27" (W), 4" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 5
UPC Code: 85339959601
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
