PVC Fittings Online | SKU: AMU1206

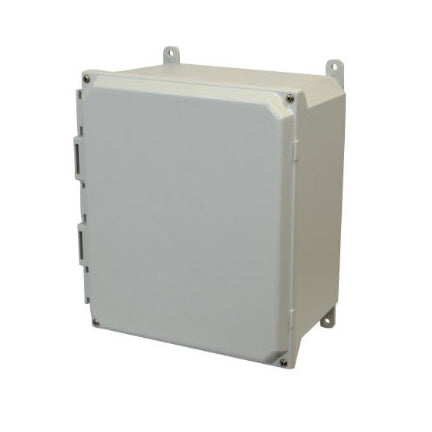

AMU1206 12x10x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount

Name: AMU1206 12x10x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Foot Mount
Brand: PVC Fittings Online
SKU: AMU1206
Price: 154.87 USD
Availability: InStock

AMU Fiberglass Enclosure Lift-Off Screw Cover - Part: AMU1206

Allied Moulded enclosures have a 4-6 week lead time.

$154.87

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded's products are non-corrosive and non-conductive rather than electrical. They are easily punch, drilled or sawed for simpler modifications. These enclosures are also easy to mount.

Additional Info

Related Documents: Not Available

Part Number: AMU1206

Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 7

UPC Code: 85339959007

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
