PVC Fittings Online  |  SKU: AMU1206CC

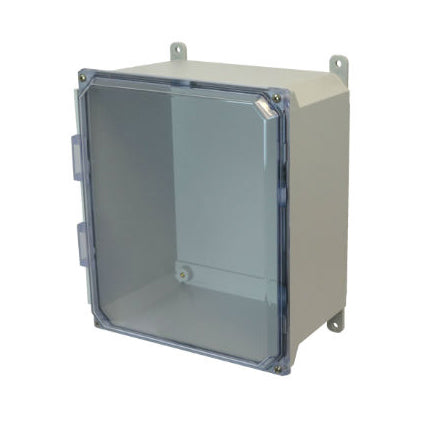

AMU1206CC 12x10x6 NEMA 4X Fiberglass Enclosure w/ Clear Lift-Off Screw Cover Foot Mount

AMU Fiberglass Enclosure Clear Lift-Off Screw Cover - Part: AMU1206CC

Allied Moulded enclosures have a 4-6 week lead time.

$172.24
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
These electrical enclosures are designed to insulate and house electrical controls, instruments or components for indoor and outdoor applications. They are strong enough to withstand the most extreme temperatures. Various shapes and sizes available.

Additional Info
Related Documents: Not Available
Part Number: AMU1206CC
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959014
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
