PVC Fittings Online  |  SKU: AMU1206CCH

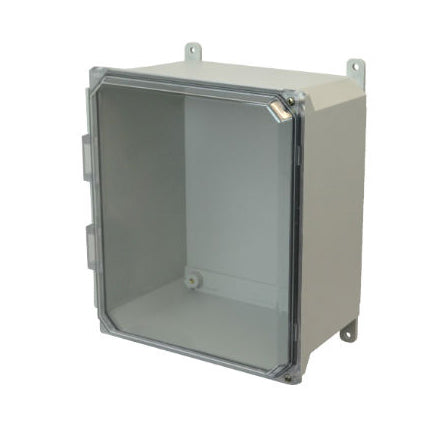

AMU1206CCH 12x10x6 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Foot Mount

AMU Fiberglass Enclosure Clear Hinged Screw Cover - Part: AMU1206CCH

Allied Moulded enclosures have a 4-6 week lead time.

$183.78
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Fiberglass enclosures by Allied Moulded are durable and can be used long term. They protect against rain, dirt, dust, oil and so much more. They are also easy to mount to a pole, wall, or machine.

Additional Info
Related Documents: Not Available
Part Number: AMU1206CCH
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959045
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
