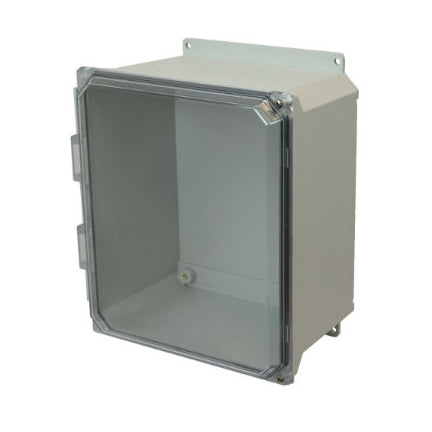

AMU1206CCHF 12x10x6 NEMA 4X Fiberglass Enclosure w/ Clear Hinged Screw Cover Flange Mount

AMU Fiberglass Enclosure Clear Hinged Screw Cover AMU1206CCHF

Allied Moulded enclosures have a 4-6 week lead time.

$187.96
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This electrical enclosure is a hinged 2-screw box with a clear window to provide a viewing area for instrumentation or equipment UV stabilized for outdoor use. This enclosure is also easy to customize.

Additional Info
Related Documents: Not Available
Part Number: AMU1206CCHF
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Clear
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959434
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
