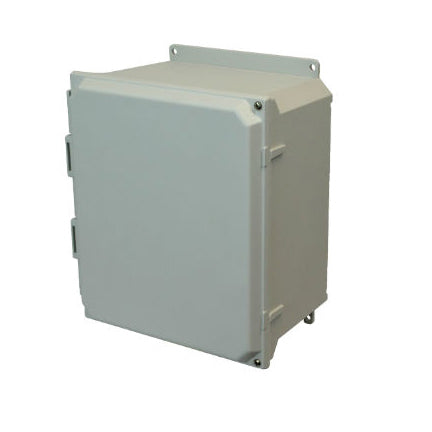

AMU1206HF 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover- Part: AMU1206HF

Allied Moulded enclosures have a 4-6 week lead time.

$169.84
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
The compression molded fiberglass reinforced polyester is strong enough to withstand corrosive environments and high temperatures. They can be easily customized for your needs.

Additional Info
Related Documents: Not Available
Part Number: AMU1206HF
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959427
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
