Actual part may differ slightly from image shown.

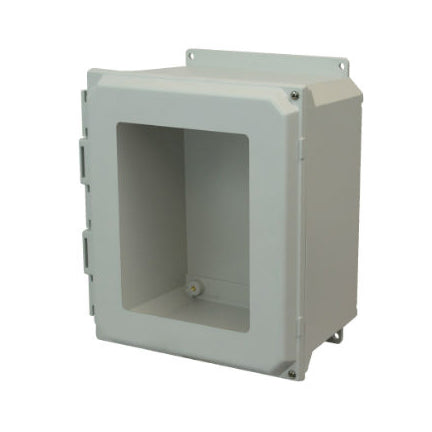

AMU1206HWF 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Flange Mount

Allied Moulded can be counted on to deliver high performance fiberglass enclosures versus other non-metallic enclosures. They are light weight and easy to handle. Allied Moulded fiberglass enclosures are the best choice for your application.

Additional Info

Related Documents: Not Available
Size in Inches: 12 inch
Part Number: AMU1206HWF
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959441
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AMU1206HWF

AMU1206HWF 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU1206HWF

Allied Moulded enclosures have a 4-6 week lead time.

$291.37
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU1206HWF

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
Allied Moulded can be counted on to deliver high performance fiberglass enclosures versus other non-metallic enclosures. They are light weight and easy to handle. Allied Moulded fiberglass enclosures are the best choice for your application.

Additional Info
Related Documents: Not Available
Size in Inches: 12 inch
Part Number: AMU1206HWF
Box Dimensions: 12.05" (H), 10.27" (W), 6" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339959441
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
