PVC Fittings Online  |  SKU: AMU1426HF

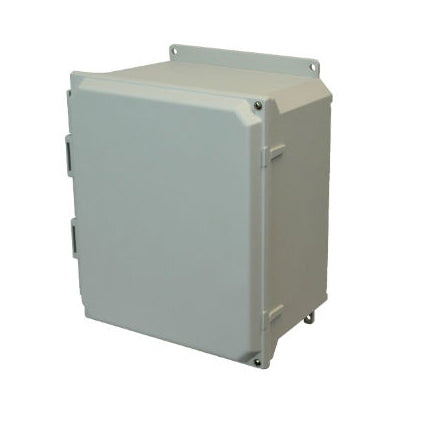

AMU1426HF 14x12x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Flange Mount

AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU1426HF

Allied Moulded enclosures have a 4-6 week lead time.

$194.15
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
These affordable electrical enclosures Allied Moulded makes are tough, light weight and durable. They protect in the most extreme weather conditions and corrosive environments Easy to punch, drill or saw for customizations too.

Additional Info
Related Documents: Not Available
Part Number: AMU1426HF
Box Dimensions: 14.05" (H), 12.27" (W), 6" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339952374
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
