PVC Fittings Online  |  SKU: AMU1426HW

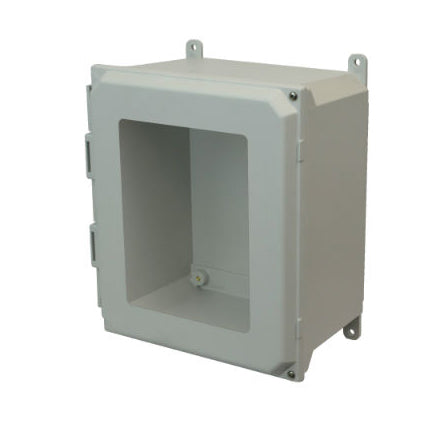

AMU1426HW 14x12x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window Foot Mount

AMU Fiberglass Enclosure Hinged Screw Cover Window - Part: AMU1426HW

Allied Moulded enclosures have a 4-6 week lead time.

$328.23
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Featuring molded latch keepers, a tongue and groove seal design, and a flange design that can be retrofit to competition, Ultraline is the ultimate in fiberglass enclosures. Non-corrosive and non-conductive they are great for both indoor and outdoor applications.

Additional Info
Related Documents: Not Available
Part Number: AMU1426HW
Box Dimensions: 14.05" (H), 12.27" (W), 6" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339952381
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
