PVC Fittings Online  |  SKU: AMU1426LW

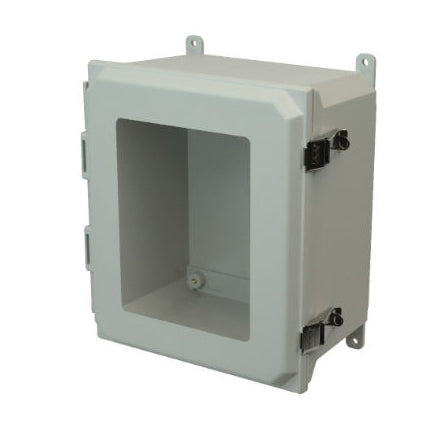

AMU1426LW 14x12x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window Foot Mount

AMU Fiberglass Enclosure Quick-Release Latch Hinged Cover Window - Part: AMU1426LW

Allied Moulded enclosures have a 4-6 week lead time.

$359.41
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Modifications are simple with Allied's enclosures, weather you want to saw, drill or punch holes. This box protects from water, wind, dirt and much more. Able to withstand the most extreme temperatures this enclosure is durable for long term use.

Additional Info
Related Documents: Not Available
Part Number: AMU1426LW
Box Dimensions: 14.05" (H), 12.27" (W), 6" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339952428
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
