PVC Fittings Online  |  SKU: AMU1426TF

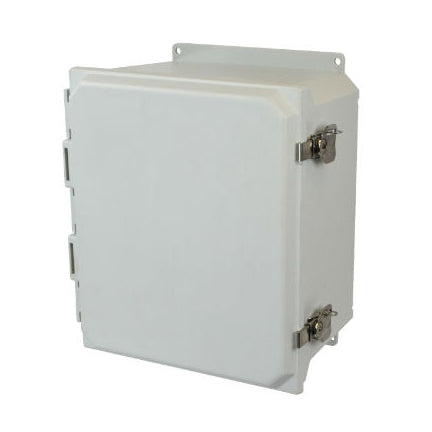

AMU1426TF 14x12x6 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Flange Mount

AMU Fiberglass Enclosure Twist Latch Hinged Cover - Part: AMU1426TF

Allied Moulded enclosures have a 4-6 week lead time.

$227.60
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
You can purchase fiberglass enclosures today in many different shapes and sizes for your electrical needs. These enclosures protect from wind, salt, water oil and much more. Can easily be reconfigured for a window opening operation.

Additional Info
Related Documents: Not Available
Part Number: AMU1426TF
Box Dimensions: 14.05" (H), 12.27" (W), 6" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339952459
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
